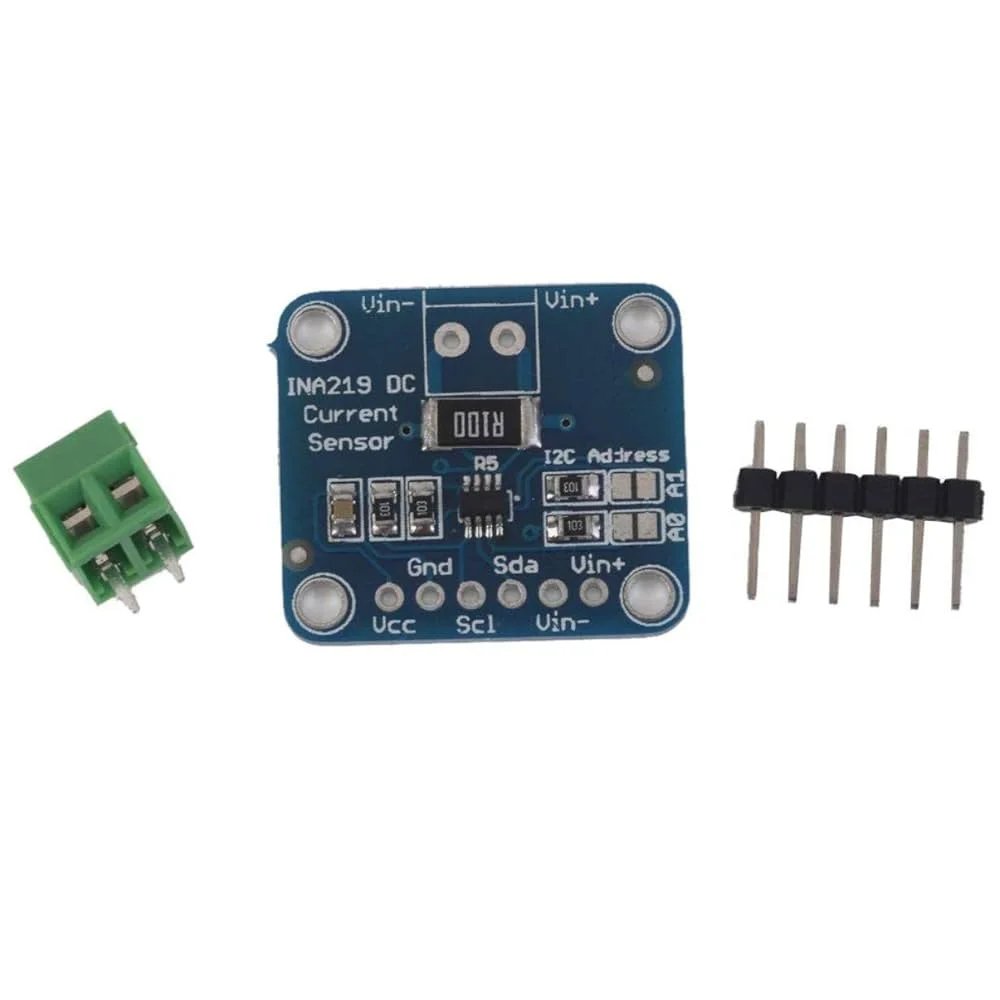

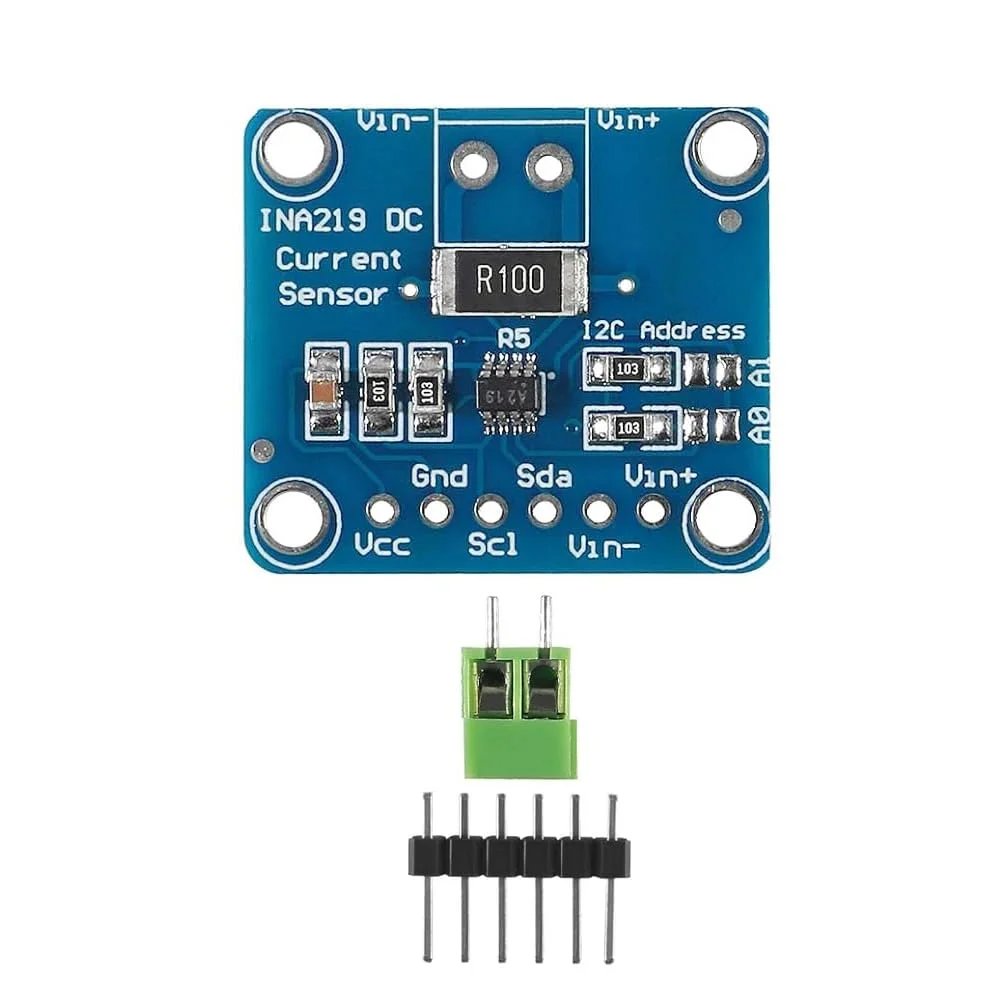

INA219 I2C Bi-Directional DC Current Power Supply Sensor Breakout Board Module I2C IIC Interface

Description Specification Reviews INA219 I2C Interface Bi-Directional DC Current Voltage Power Surveillance Sensor Breakout Module Features: NA219 module is an I2C interface with a drift, bi-directional current / power monitor integrated circuit (IC), and further expand the energy-saving electronic products TI camp. INA219 I2C Bi-directional DC Current Power Supply Sensor, Working Voltage 3~5V; Footprint: SOT23 INA219 module small size, low cost, high accuracy. It not only can monitor the voltage drop across a shunt resistor on the sensing shunt supply voltage, but also computing power. INA219 can be achieved within the maximum error accuracy of 1% from -40° C to 85° C temperature range, the maximum offset is 100 uV. The high-precision products combine the advantages of 12-bit resolution. This module can be sensed bus voltage range is 0 V to 26 V. Appliaction: The module is used for I2C port zero drift / bidirectional current / power monitoring sensor module. The device is available in a SOT23 package, providing a small digital current sensing servers, laptops, power supplies, battery management and automotive and telecommunications equipment, low-cost solutions. Package Content: 1 x INA219 I2C interface bi-directional DC current voltage stroom/power monitoring sensor breakout module   SKU: 1892 Categories: Modules and Breakout Boards, Sensors & Transducers, Voltage, Current & Power Tags: Ammeter, board, current, current sensor, i2c interface current meter, INA219, module, Sensor
